Project case study

Intra-Oral Respirometer

A miniaturized multimodal intra-oral wearable designed for continuous respiratory and cardiovascular monitoring during physical activity and clinical rehabilitation, integrating custom electronics, embedded firmware, and wireless biofeedback.

Request PCB material Request thesis
Overview

From need to functional engineering system.

The system integrates pressure sensing, PPG, IMU, FSR, BLE, haptic feedback, battery management, and wireless charging within a compact intra-oral assembly and real-time interface.

My contribution

  • Designed the full hardware architecture of the device.
  • Designed and laid out the main PCB and miniaturized PPG board.
  • Integrated physiological sensing, BLE, haptics, battery management, and wireless charging.
  • Developed assembly and encapsulation workflows for the intra-oral device.
  • Validated system performance under static and dynamic conditions in ten participants.
Project material

Real hardware, layouts, and results.

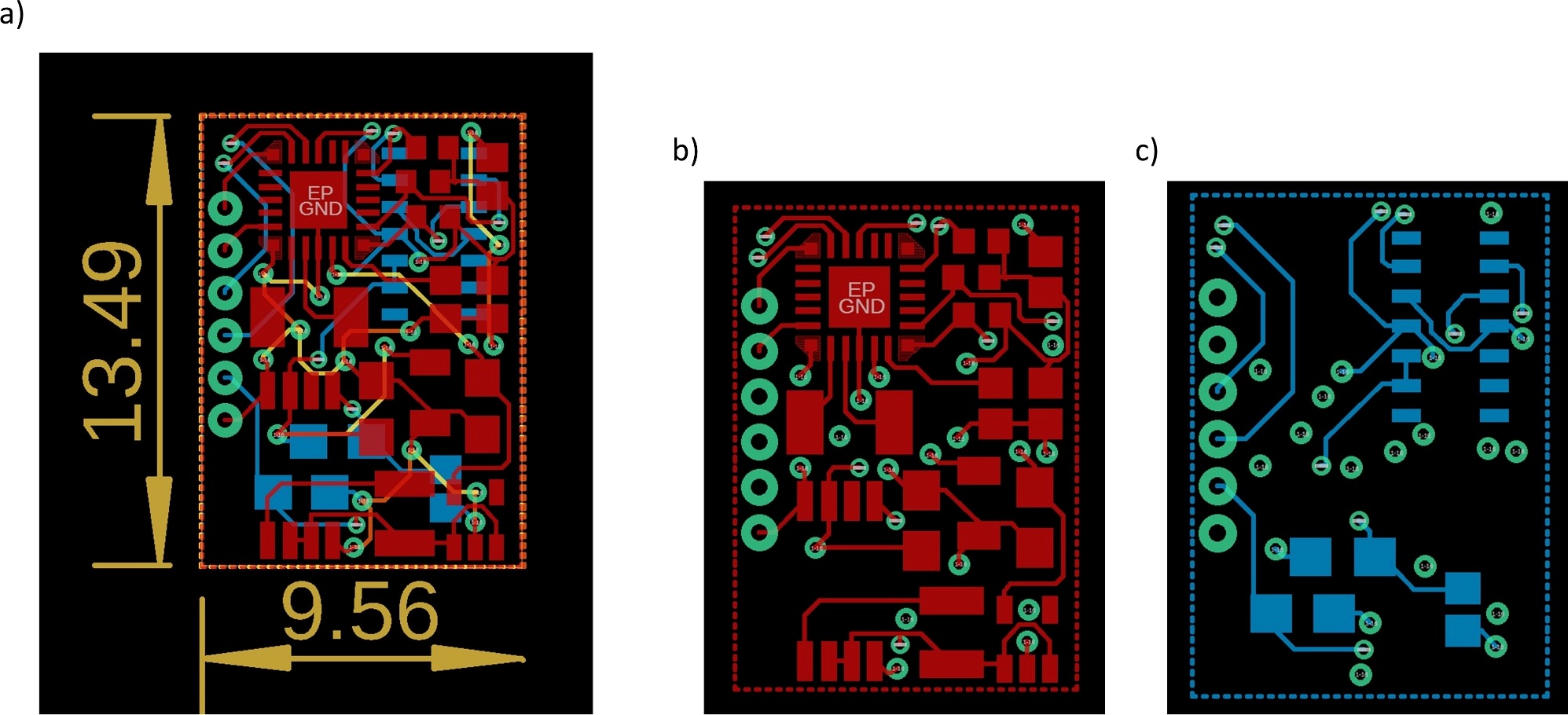

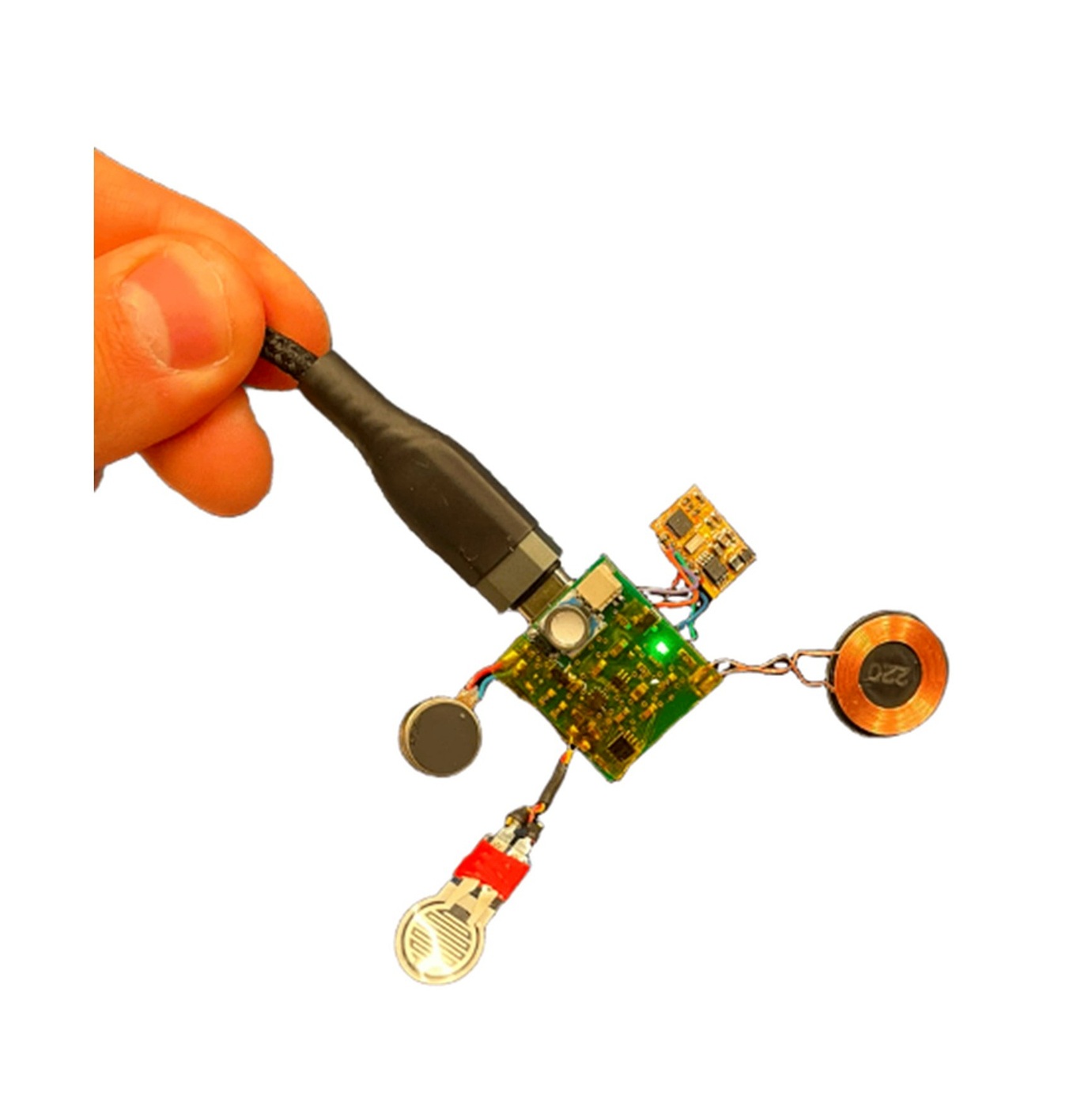

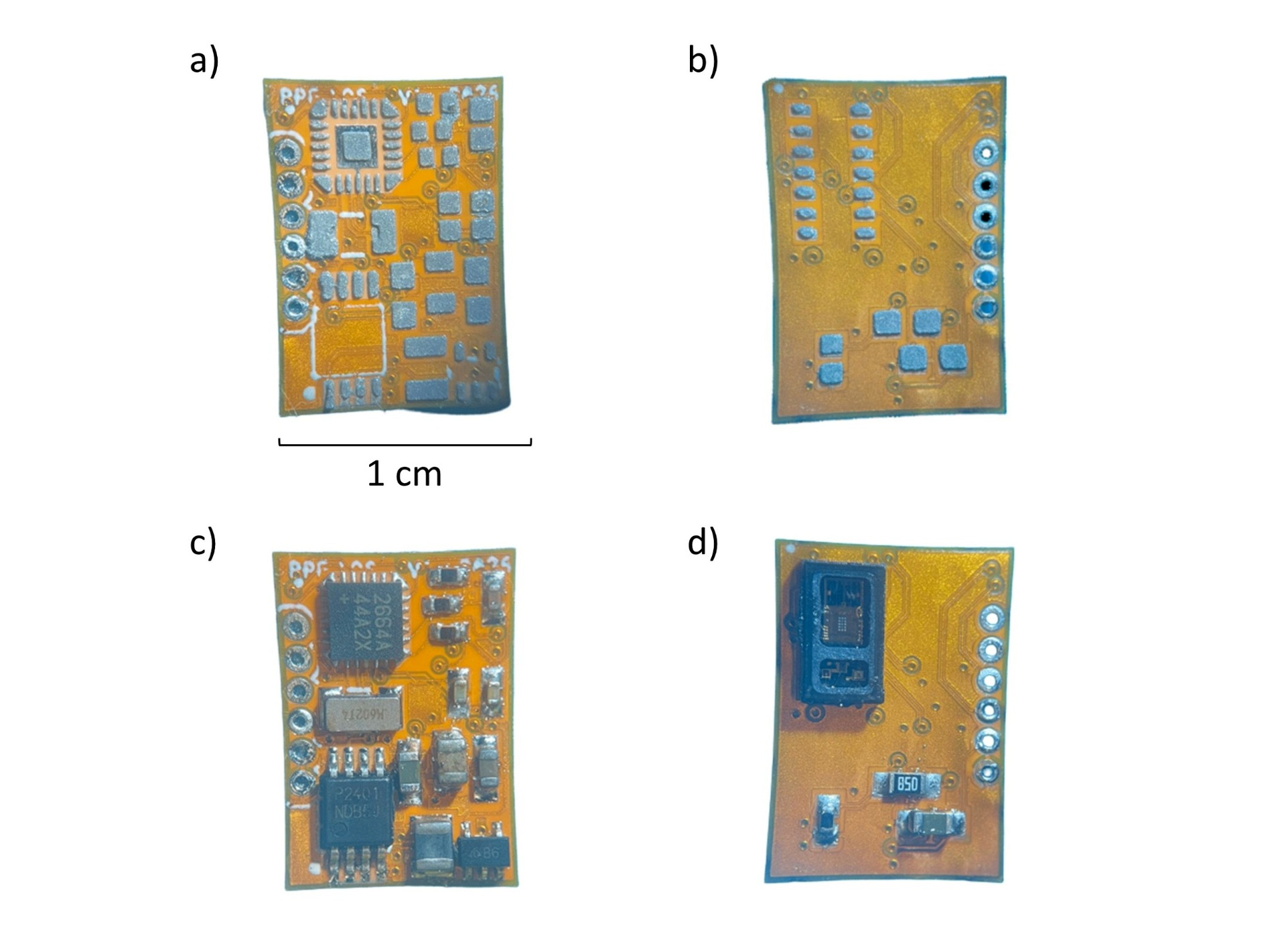

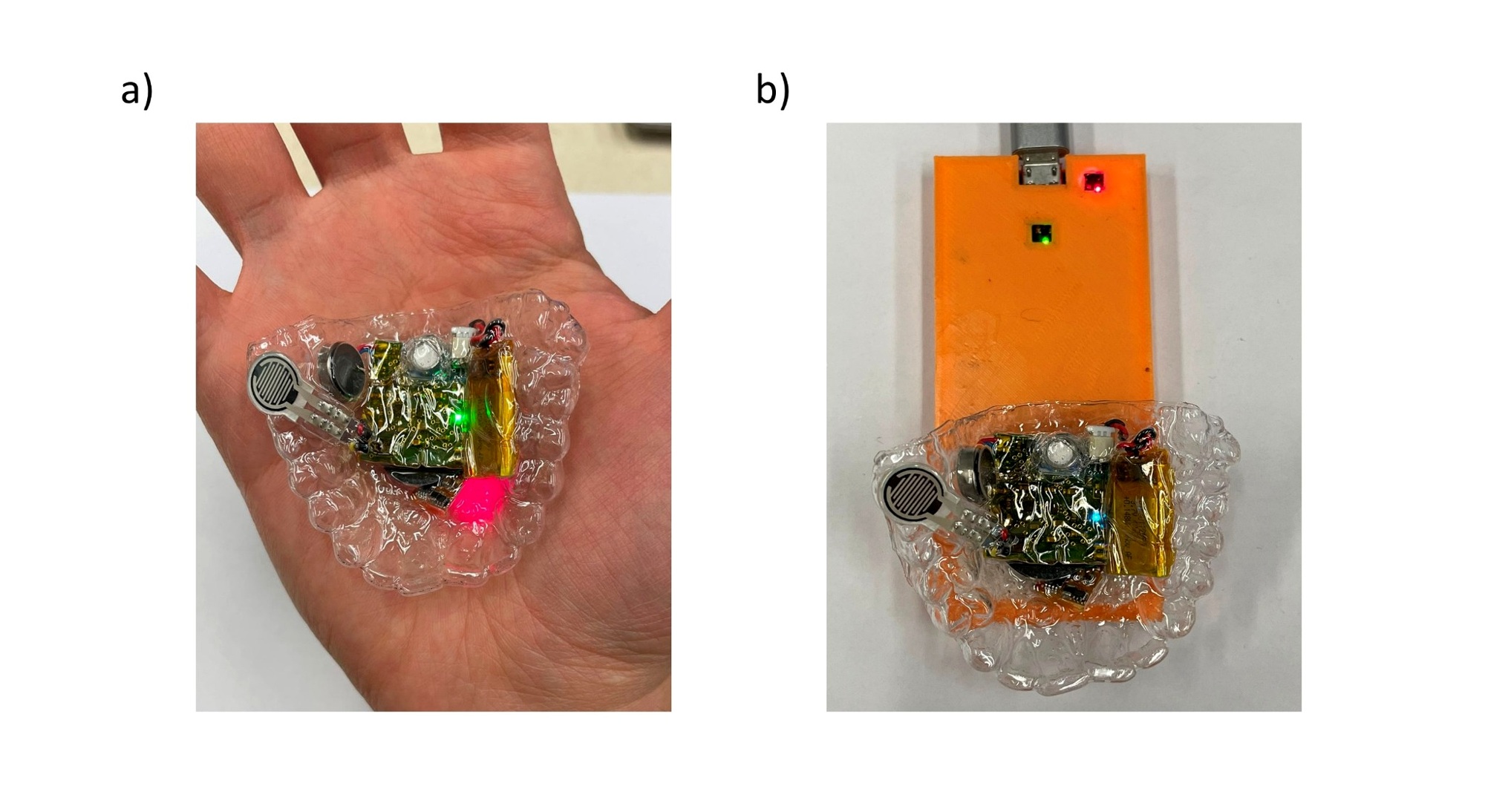

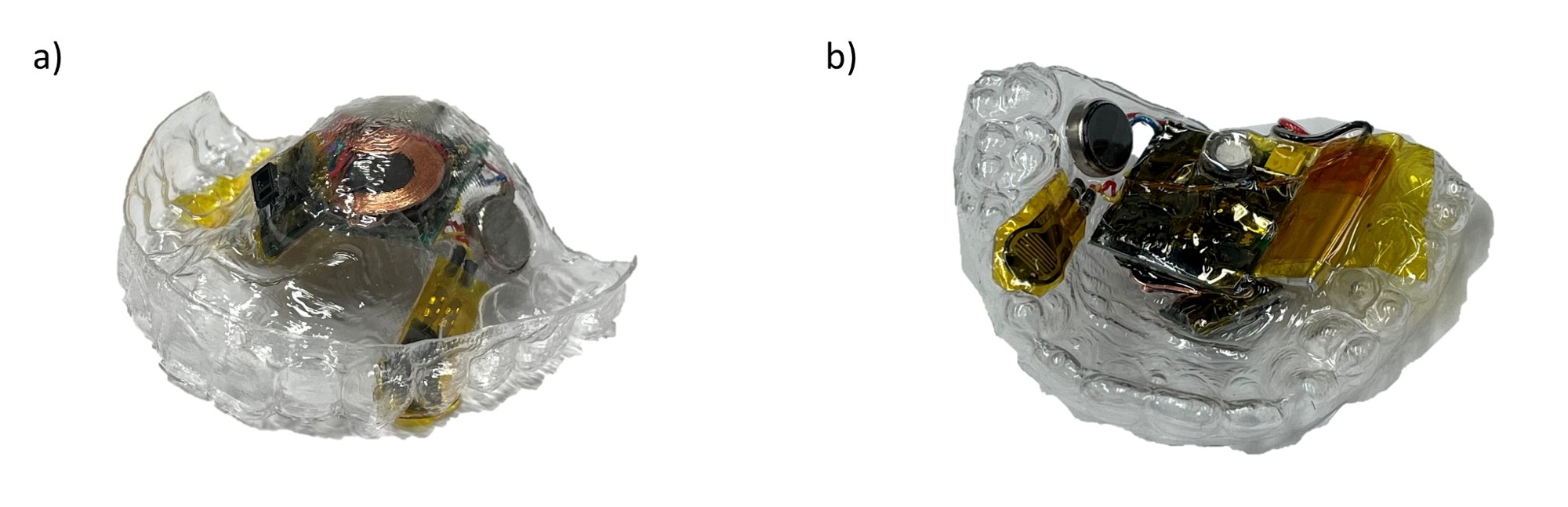

Intra-oral respirometer during experimental handlingAssembled intra-oral respirometerFunctional and charging configurationsMain board layoutRigid and flexible PPG board layoutsRigid and flexible PPG boardsFlexible PPG assemblyDevice encapsulation
